Iscar

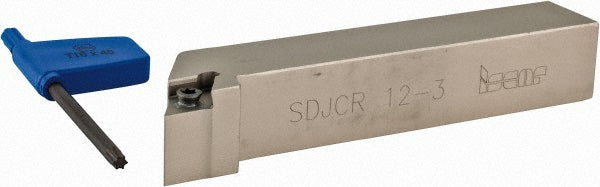

Indexable Turning & Profiling - Iscar 3600897
MFR# 3600897Series Isoturn
$150.11List $155.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3600897 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeDCGT3-0-SM
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.7800
Insert compatibilityDC..
Insert holding methodScrew
Multi use toolNo
Overall length4.5000
RakeNeutral
Rake angle0
Shank height0.7500
Shank width0.7500
StandardsISO 13399
Toolholder styleSDJC
