Iscar

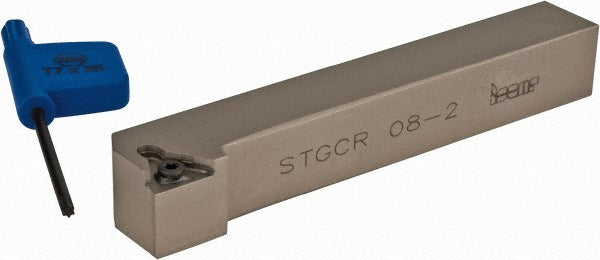

Indexable Turning & Profiling - Iscar 3601038
MFR# 3601038Series Isoturn
$133.65List $138.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601038 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge0.6300
Compatible insert size codeTCMT2-0-F3P
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.5000
Insert compatibilityTC..
Insert holding methodScrew
Multi use toolNo
Overall length3.5000
RakeNeutral
Rake angle0
Shank height0.5000
Shank width0.5000
StandardsISO 13399
Toolholder styleSTGC
