Iscar

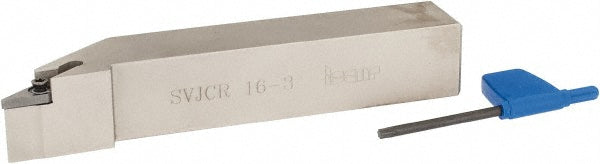

Indexable Turning & Profiling - Iscar 3601071
MFR# 3601071Cat# SVJCR163Series Isoturn
$189.81List $196.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601071 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeVCMT330-SM
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.1800
Insert compatibilityVC..33..
Insert holding methodScrew
Manufacturers catalog numberSVJCR163
Multi use toolNo
Overall length in6
RakeNeutral
Rake angle0
Shank height in1
Shank width in1
StandardsISO 13399
Toolholder materialSteel
Toolholder styleSVJC
