Iscar

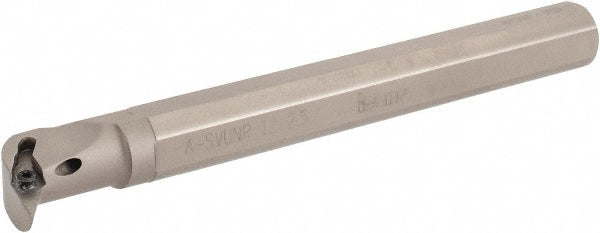

Indexable Boring - Iscar 3601217
MFR# 3601217Series Isoturn
$338.94List $350.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601217 indexable boring. Series Isoturn.
Specifications
Center to cutting edge0.6300
Compatible insert shapeDiamond
Compatible insert size code2.5
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Insert compatibilityVN.. 2.5
Insert holding methodScrew
Lead angle-7.00
Maximum bore depth1.2000
Minimum bore diameter1.0400
Msc manufacturer numberA-SVUNR 12-2.5
Multi use toolNo
Overall length7.0000
RakeNegative (Axial); Negative (Radial)
Shank diameter in3/4
StandardsISO 13399
Toolholder styleA-SVUN
