Iscar

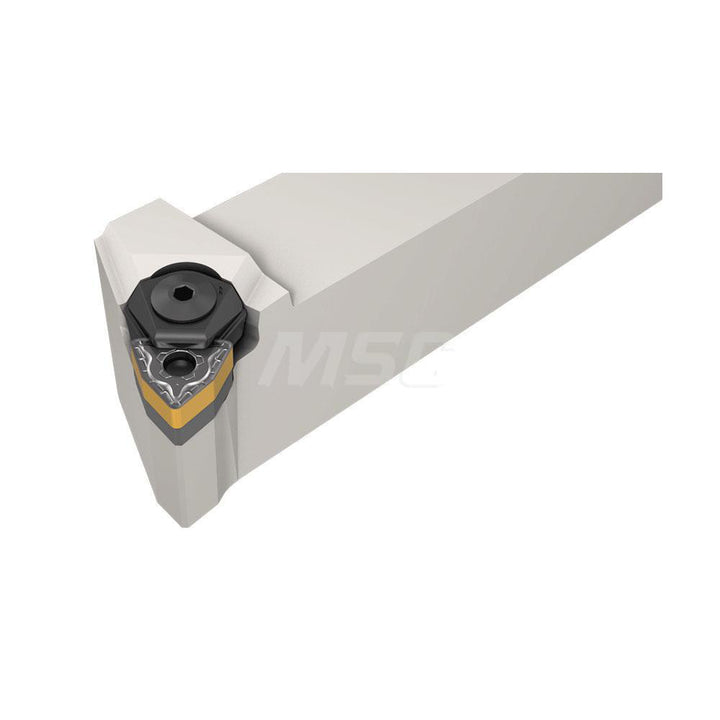

Indexable Turning & Profiling - Iscar 3601333
MFR# 3601333Series Isoturn
$136.55List $141.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601333 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeWNMG3-1-GN
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.0000
Insert compatibilityWN..33.
Insert inscribed circle in3/8
Multi use toolNo
Overall length in4-1/2
RakeNegative
Rake angle-6
Shank height in3/4
Shank width in3/4
StandardsISO 13399
Toolholder materialSteel
Toolholder styleMWLN
