Iscar

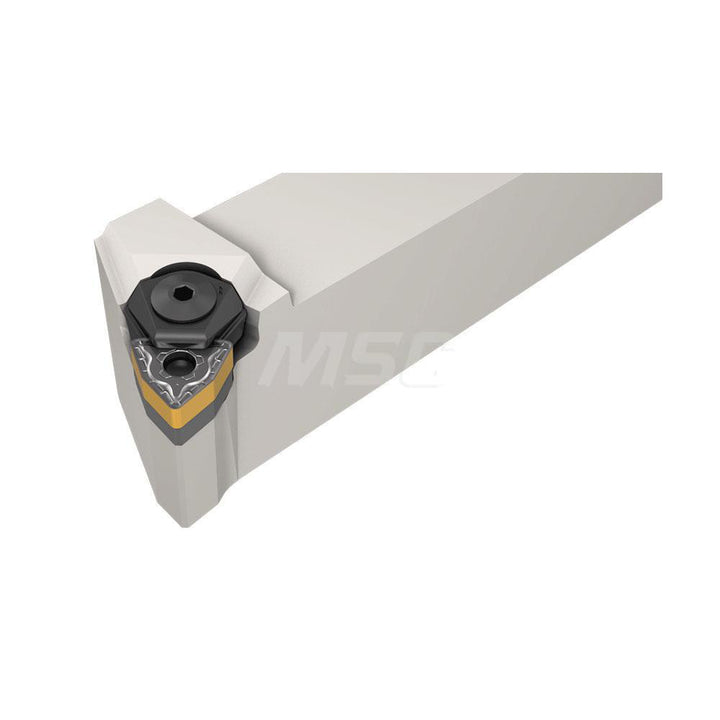

Indexable Turning & Profiling - Iscar 3601336
MFR# 3601336Series Isoturn
$124.92List $129.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601336 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge0.8800
Compatible insert size codeWNMG3-1-GN
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.0000
Insert compatibilityWNM..3
Insert holding methodWedge
Multi use toolNo
Overall length4.0000
RakeNegative
Rake angle-6
Shank height0.6250
Shank width0.6250
StandardsISO 13399
Toolholder styleMWLN
