Iscar

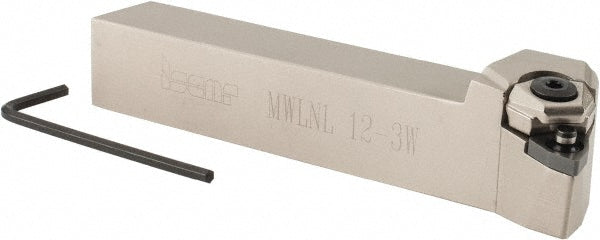

Indexable Turning & Profiling - Iscar 3601337
MFR# 3601337Series Isoturn
$136.55List $141.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601337 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeWNMG3-1-GN
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.0000
Insert compatibilityWNM..3
Insert holding methodWedge
Multi use toolNo
Overall length4.5000
RakeNegative
Rake angle-6
Shank height0.7500
Shank width0.7500
StandardsISO 13399
Toolholder styleMWLN
