Iscar

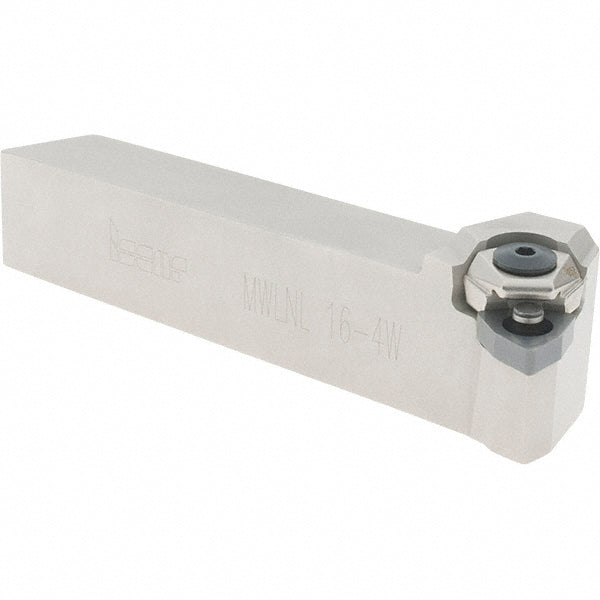

Indexable Turning & Profiling - Iscar 3601340
MFR# 3601340Series Isoturn
$153.67
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601340 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeWNMG431-GN
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.2500
Insert compatibilityWNM..43..
Insert holding methodWedge
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.0000
Shank width1.0000
StandardsISO 13399
Toolholder styleMWLN
