Iscar

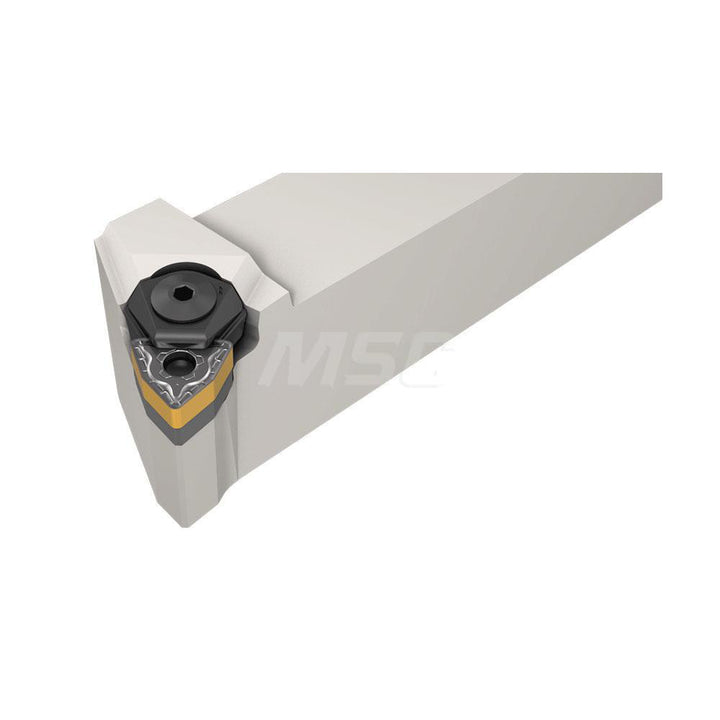

Indexable Turning & Profiling - Iscar 3601341
MFR# 3601341Series Isoturn
$138.95List $147.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601341 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeWNMG431-GN
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.2500
Insert compatibilityWN..43.
Insert inscribed circle in1/2
Multi use toolNo
Overall length in4-1/2
RakeNegative
Rake angle-6
Shank height in3/4
Shank width in3/4
StandardsISO 13399
Toolholder materialSteel
Toolholder styleMWLN
