Iscar

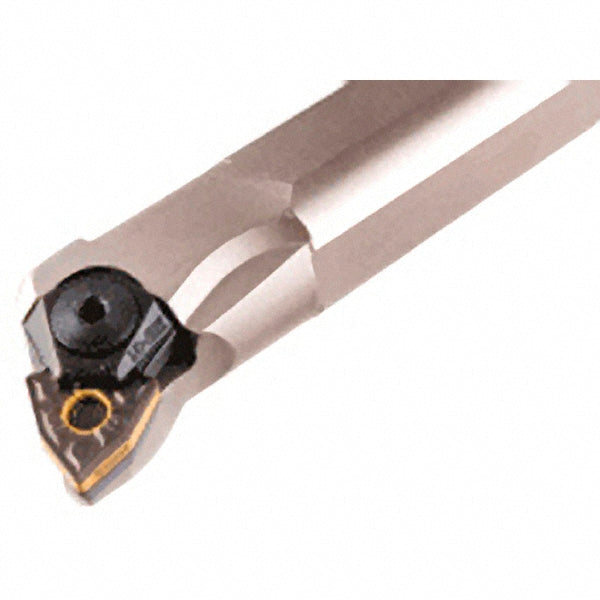

Indexable Boring - Iscar 3601349
MFR# 3601349Series Isoturn
$513.26List $530.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601349 indexable boring. Series Isoturn.
Specifications
Center to cutting edge0.8900
Compatible insert shapeTrigon
Compatible insert size code43
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Insert compatibilityWNM.. 43..
Insert holding methodWedge
Maximum bore depth2.1600
Minimum bore diameter1.7600
Multi use toolNo
Overall length14.0000
RakeNegative
Rake angle-10.00
Shank diameter in1-1/2
StandardsISO 13399
Toolholder styleS-MWLN
Tool materialSteel
