Iscar

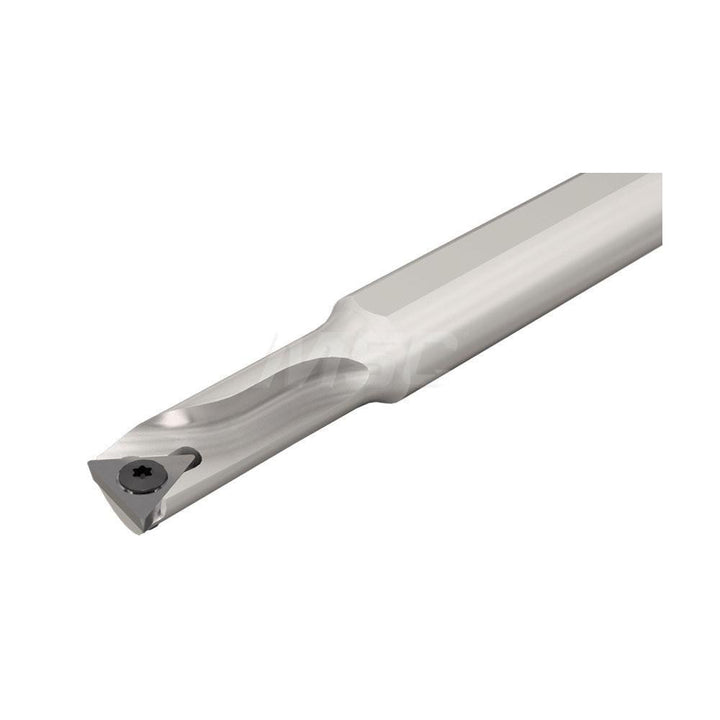

Indexable Boring - Iscar 3601374
MFR# 3601374Series Isoturn
$160.64List $163.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601374 indexable boring. Series Isoturn.
Specifications
Center to cutting edge0.3600
Compatible insert shapeTriangle
Compatible insert size code32
Coolant throughNo
Cutting tool applicationTurning
Insert compatibilityTP.. 32..
Insert holding methodScrew
Lead angle95.00
Maximum bore depth (mm)18.00
Minimum bore diameter0.7090
Multi use toolNo
Overall length7.0000
RakePositive
Rake angle5.00
Shank diameter in5/8
StandardsISO 13399
Toolholder styleBBN
