Iscar

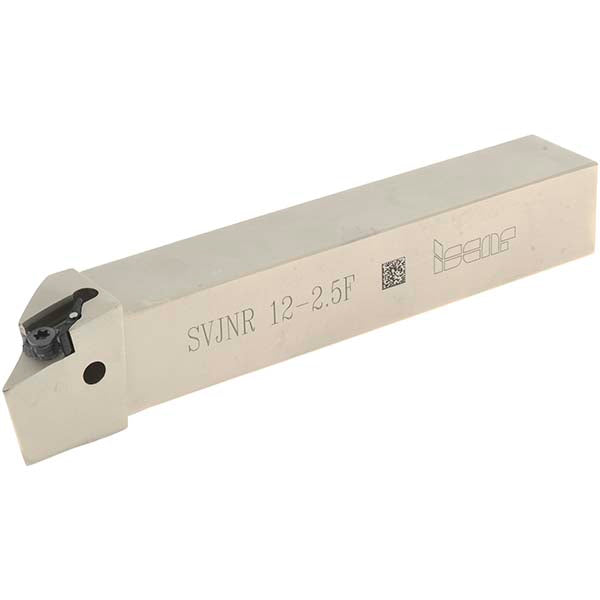

Indexable Turning & Profiling - Iscar 3601922
MFR# 3601922Series Isoturn
$180.12List $186.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601922 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeVNMG2.5-0-SF
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationMilling; Turning
Hand of holderRight Hand
Head length1.0000
Insert compatibilityVN..2.5
Insert holding methodScrew
Multi use toolYes
Overall length5.0000
RakeNegative
Rake angle-12; -6
Shank height0.7500
Shank width0.7500
StandardsISO 13399
Toolholder styleSVJN
