Iscar

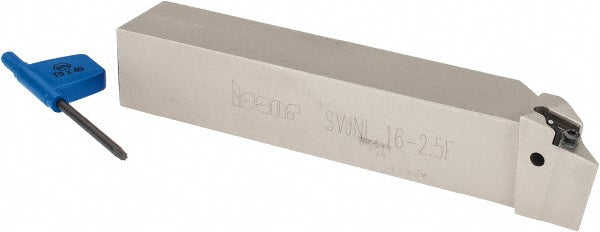

Indexable Turning & Profiling - Iscar 3601925
MFR# 3601925Series Isoturn
$191.75List $198.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3601925 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeVNMG2.5-0-SF
Complete insert compatibilityVNMG-SF; VNMG/VNGG-NF; VNMM-PP
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationMilling; Turning
Hand of holderLeft Hand
Head length1.1900
Insert compatibilityVN..
Insert holding methodScrew
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-12; -6
Shank height1.0000
Shank width1.0000
StandardsISO 13399
Toolholder styleSVJN
