Iscar

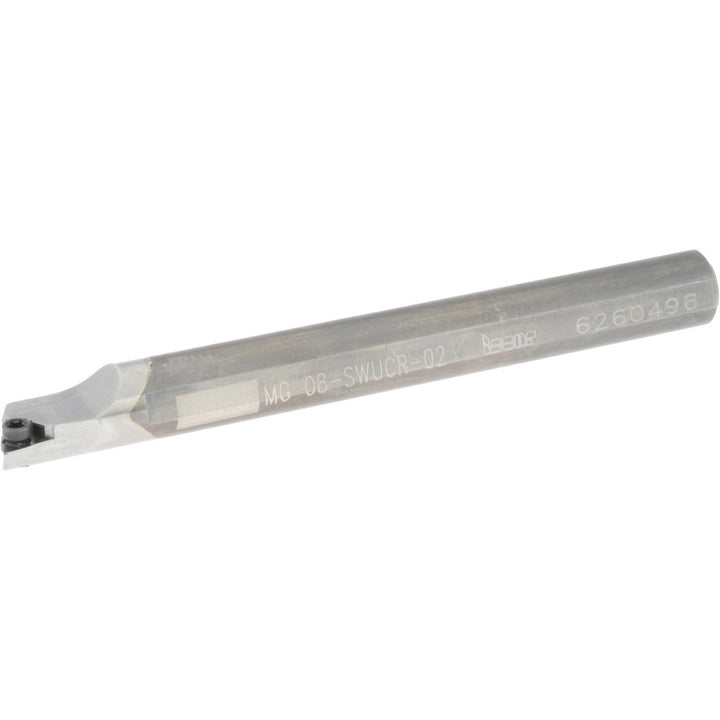

Indexable Boring - Iscar 3602008
MFR# 3602008Series Isoturn
$205.59List $212.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602008 indexable boring. Series Isoturn.
Specifications
Center to cutting edge0.1693
Compatible insert shapeTrigon
Compatible insert size code0201
Coolant throughYes
Cutting tool applicationBoring; Turning
Hand of holderRight Hand
Insert compatibilityWCGT 0201..
Insert holding methodScrew
Lead angle93
Minimum bore diameter0.3465
Multi use toolNo
Overall length2.9803
RakePositive
Rake angle12.00
Shank diameter (mm)8.00
StandardsISO 13399
Toolholder styleMG-SWUC
Tool materialSolid Carbide
