Iscar

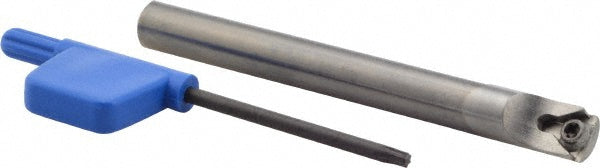

Indexable Boring - Iscar 3602009
MFR# 3602009Series Isoturn
$178.09List $183.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602009 indexable boring. Series Isoturn.
Specifications
Center to cutting edge0.1929
Compatible insert shapeTriangle
Compatible insert size code73
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Insert compatibilityTPGX 73..
Insert holding methodScrew
Lead angle91.00
Minimum bore diameter0.3740
Multi use toolNo
Overall length3.1102
RakeNegative
Rake angle-15.00
Shank diameter0.3150
StandardsISO 13399
Toolholder styleMG STFP-X
Tool materialSolid Carbide
