Iscar

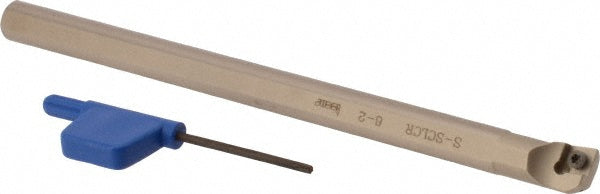

Indexable Boring - Iscar 3602068
MFR# 3602068Series Isoturn
$184.97List $191.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602068 indexable boring. Series Isoturn.
Specifications
Center to cutting edge0.2500
Compatible insert shapeDiamond
Compatible insert size code2
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Insert compatibilityCC.T 2
Insert holding methodScrew
Maximum bore depth in3/4
Minimum bore diameter0.4490
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-7.00
Shank diameter in3/8
StandardsISO 13399
Toolholder styleS-SCLC
