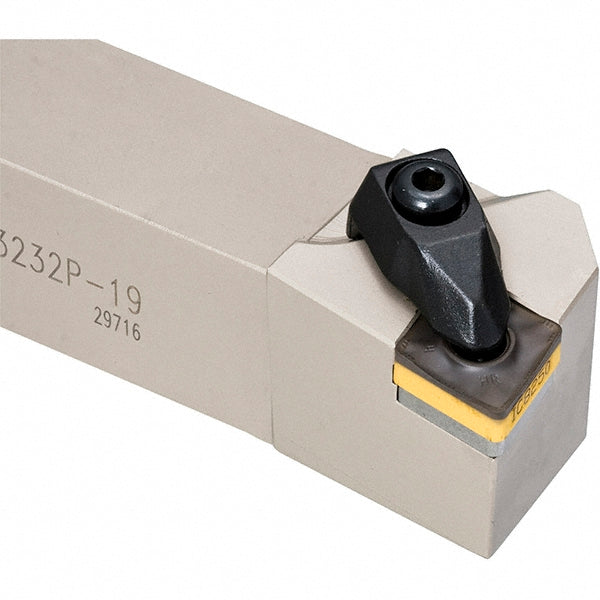

Indexable Turning & Profiling - Iscar 3602096

Iscar

Indexable Turning & Profiling - Iscar 3602096

MFR# 3602096Series Isoturn

$142.01List $144.10 Save 1%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 3602096 indexable turning & profiling. Series Isoturn.

Specifications

Back of bar to cutting edge0.8800
Compatible insert size codeCN
Complete insert compatibilityCNGA-Ceramic; CNMA; CNMG-GN; CNMG-NF; CNMG/CNGG-PP
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.4000
Insert compatibilityCN..
Insert holding methodClamp
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6; -8
Shank height1.0000
Shank width in1
StandardsISO 13399
Toolholder styleDCBN
