Iscar

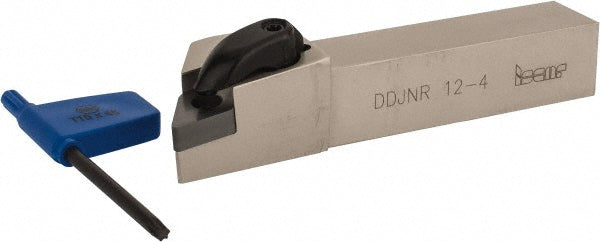

Indexable Turning & Profiling - Iscar 3602098
MFR# 3602098Cat# DDJNR; L124Series Isoturn
$138.97List $141.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602098 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeDNMG432-GN
Complete insert compatibilityDNGA-Ceramic; DNGA-MC/M4 (CBN); DNGA-R2/M2 (CBN); DNGG-M4HF/M4HM (CBN); DNMA; DNMA (CBN); DNMG-GN; DNMG-M3M; DNMG-NF; DNMG-NR; DNMG-PF; DNMG-VL; DNMG-WG; DNMG/DNGG-PP; DNMG/DNGG-SF; DNMG/DNGG-TF; DNMM-NM; DNMS-12; DNMX-HT
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.5400
Insert compatibilityDN..43.
Insert holding methodClamp
Manufacturers catalog numberDDJNR; L124
Multi use toolNo
Overall length4.5000
RakeNegative
Rake angle-6
Shank height0.7500
Shank width0.7500
StandardsISO 13399
Toolholder styleDDJN
