Iscar

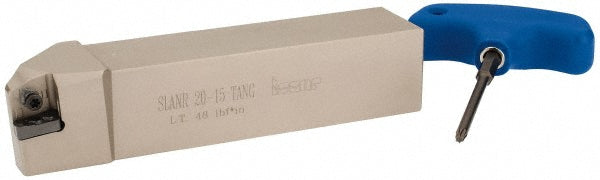

Indexable Turning & Profiling - Iscar 3602119
MFR# 3602119Series Heliturn
$187.87List $194.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602119 indexable turning & profiling. Series Heliturn.
Specifications
Back of bar to cutting edge1.4600
Compatible insert size codeLNMX150608R-HT
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.3700
Insert compatibilityLNMX 1506..
Insert holding methodClamp; Screw
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.2500
Shank width1.2500
StandardsISO 13399
Toolholder styleSLAN
