Iscar

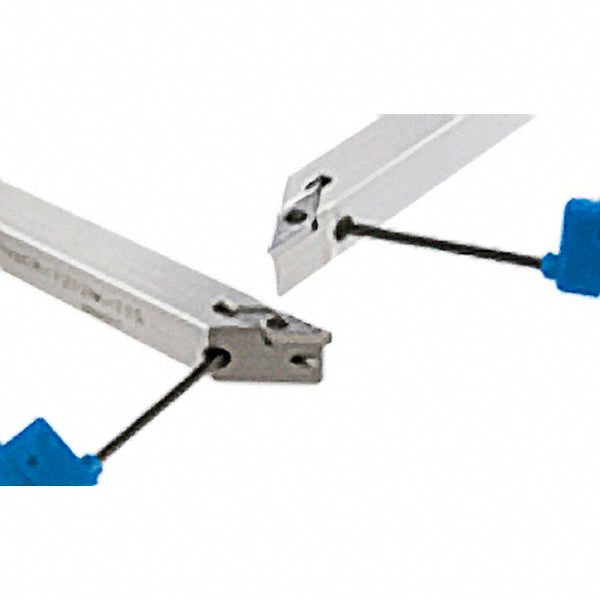

Indexable Turning & Profiling - Iscar 3602204
MFR# 3602204Series Isoturn
$169.47List $175.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602204 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge (mm)12.20
Compatible insert size codeVCMT110302-SM
Complete insert compatibilityVCET-WF; VCGT-AS; VCMT-SM
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Insert compatibilityVC.T
Insert holding methodClamp
Insert inscribed circle0.2500
Lead angle35.0
Multi use toolNo
Overall length (mm)150.00
RakeNeutral
Rake angle0
Shank height (mm)12.00
Shank width (mm)12.00
StandardsISO 13399
Toolholder stylePVAC
