Iscar

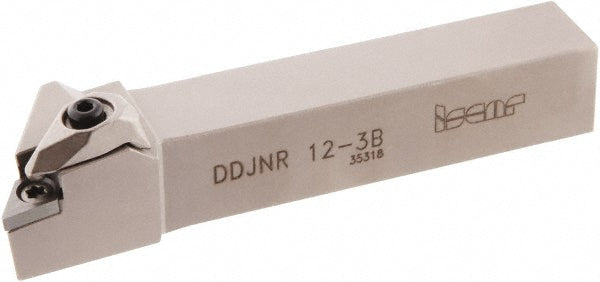

Indexable Turning & Profiling - Iscar 3602564
MFR# 3602564Cat# DDJNR; L123BSeries R-Clamp
$136.55List $141.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602564 indexable turning & profiling. Series R-Clamp.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeDNMG332-GN
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.1800
Insert compatibilityDN..33.
Insert holding methodClamp
Insert inscribed circle in3/8
Manufacturers catalog numberDDJNR; L123B
Multi use toolNo
Overall length in4-1/2
RakeNegative
Rake angle0
Shank height in3/4
Shank width in3/4
StandardsISO 13399
Toolholder styleDDJN
