Iscar

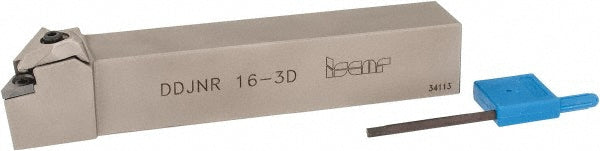

Indexable Turning & Profiling - Iscar 3602565
MFR# 3602565Cat# DDJNR; L163DSeries Isoturn
$146.23List $151.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602565 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeDNMG332-GN
Complete insert compatibilityDNMG-GN; DNMG-M3M; DNMG-NF; DNMG-PF; DNMG-VL; DNMG/DNGG-PP; DNMG/DNGG-SF; DNMG/DNGG-TF
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.1800
Insert compatibilityDN..33.
Insert holding methodClamp
Manufacturers catalog numberDDJNR; L163D
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6; -7
Shank height1.0000
Shank width1.0000
StandardsISO 13399
Toolholder styleDDJN
