Iscar

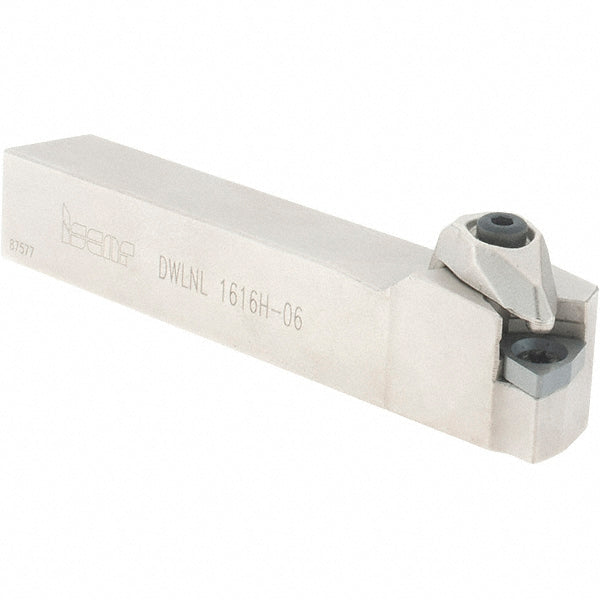

Indexable Turning & Profiling - Iscar 3602587
MFR# 3602587Series Isoturn
$124.92List $129.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602587 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge (mm)16.00
Compatible insert size codeWNMG06T304-GN
Complete insert compatibilityWNMA/WNMA-WG; WNMG-GN; WNMG-NF; WNMG-PP; WNMG-TF
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length (mm)26.00
Insert compatibilityWNM..
Insert holding methodScrew
Insert inscribed circle0.3750
Multi use toolNo
Overall length (mm)100.00
RakeNegative
Shank height (mm)16.00
Shank width (mm)16.00
StandardsISO 13399
Toolholder styleDWLN
