Iscar

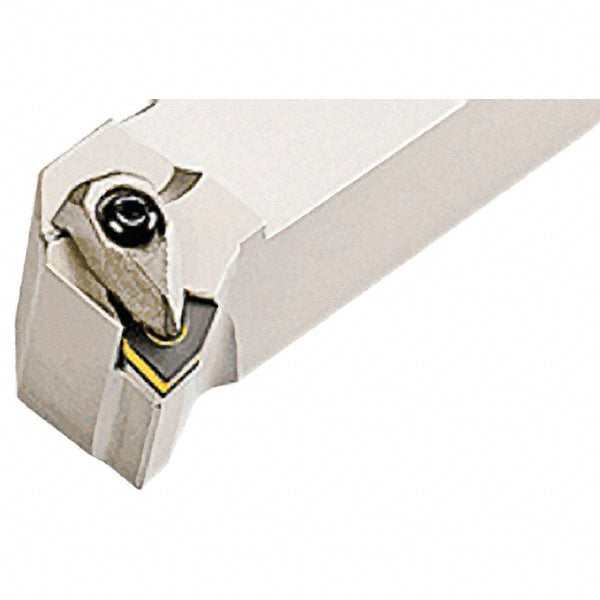

Indexable Turning & Profiling - Iscar 3602588
MFR# 3602588Series Isoturn
$138.97List $141.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602588 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge (mm)25.00
Compatible insert size codeWNMG06T304-GN
Complete insert compatibilityWNMA/WNMA-WG; WNMG-GN; WNMG-NF; WNMG-PP; WNMG-TF
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length (mm)26.00
Insert compatibilityWNM..
Insert holding methodScrew
Insert inscribed circle0.3750
Multi use toolNo
Overall length (mm)125.00
RakeNegative
Shank height (mm)20.00
Shank width (mm)20.00
StandardsISO 13399
Toolholder styleDWLN
