Iscar

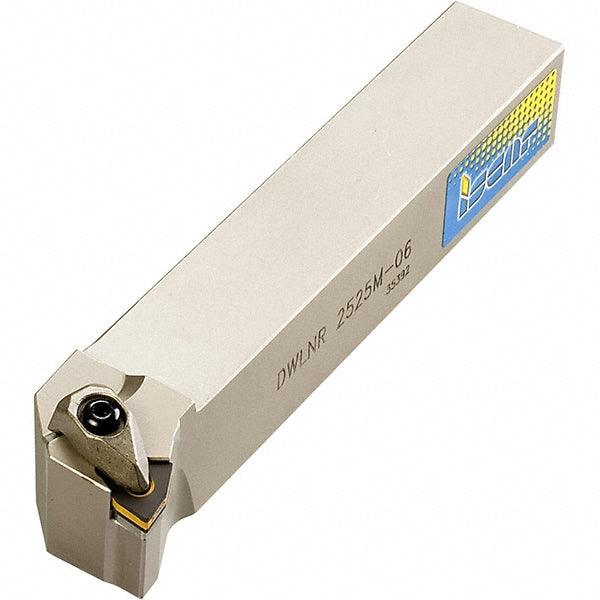

Indexable Turning & Profiling - Iscar 3602595
MFR# 3602595Series Isoturn
$136.55List $141.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602595 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeWNMG3-1-GN
Complete insert compatibilityWNMA/WNMA-WG; WNMG-GN; WNMG-M3M; WNMG-NF; WNMG-PP; WNMG-TF; WNMG-WF; WNMG-WG
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.9400
Insert compatibilityWNM..
Insert holding methodScrew
Multi use toolNo
Overall length4.5000
RakeNegative
Rake angle-6
Shank height0.7500
Shank width0.7500
StandardsISO 13399
Toolholder styleDWLN
