Iscar

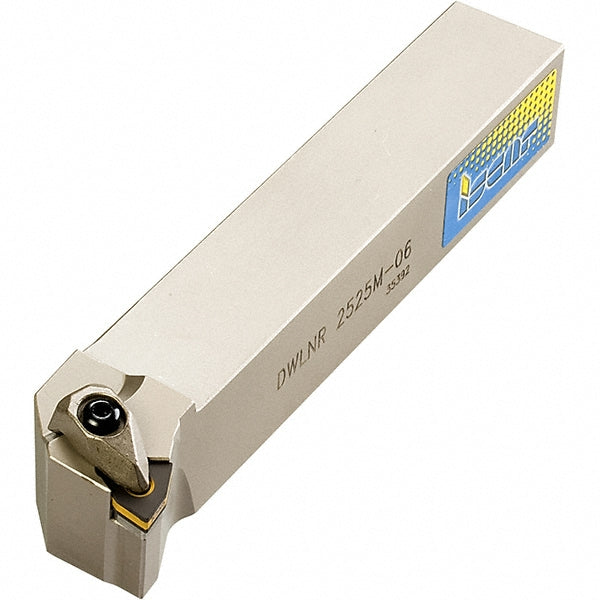

Indexable Turning & Profiling - Iscar 3602613
MFR# 3602613Series Heliturn
$164.53List $169.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602613 indexable turning & profiling. Series Heliturn.
Specifications
Back of bar to cutting edge1.1800
Compatible insert size codeLNMX150608L-HT
Complete insert compatibilityLNMX-HM; LNMX-HT; LNMX-WG
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.0500
Insert compatibilityLNMX
Insert holding methodClamp
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.0000
Shank width1.0000
StandardsISO 13399
Toolholder styleSLFN
