Iscar
Indexable Turning & Profiling - Iscar 3602728
MFR# 3602728Series Heliturn
$161.73List $167.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

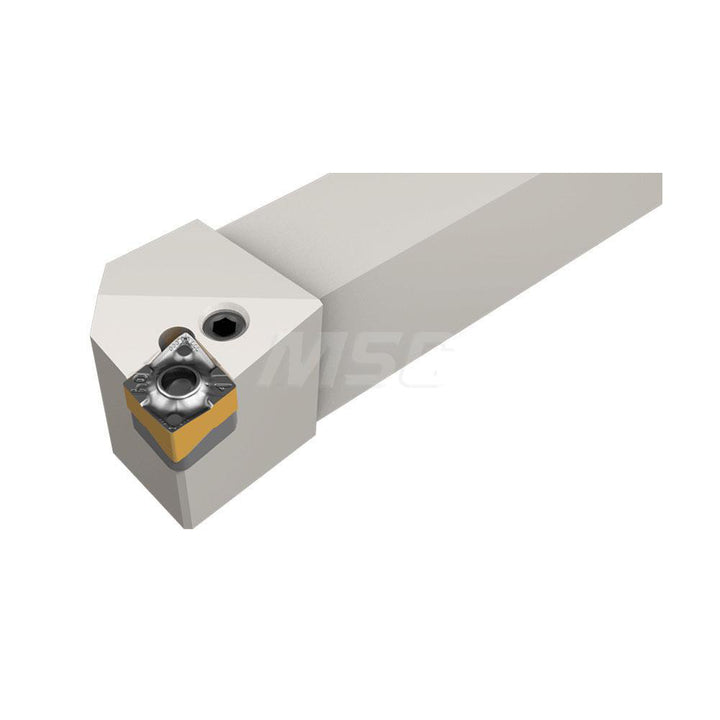

The Iscar 3602728 indexable turning & profiling. Series Heliturn.
Specifications
Back of bar to cutting edge1.5000
Compatible insert size codeCNMX
Complete insert compatibilityCNMX-HTW; CNMX-M4MW
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.2200
Insert compatibilityCNMX
Insert holding methodClamp
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6; 6
Shank height1.2500
Shank width1.2500
StandardsISO 13399
Toolholder stylePCLN
