Iscar

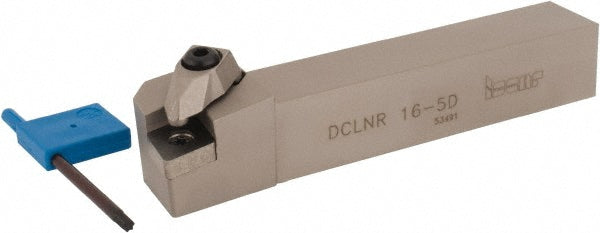

Indexable Turning & Profiling - Iscar 3602755
MFR# 3602755Cat# DCLNR; L165Series Isoturn
$146.23List $151.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3602755 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeCN54
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.4200
Insert compatibilityCN..54.
Insert holding methodClamp
Insert inscribed circle in5/8
Manufacturers catalog numberDCLNR; L165
Multi use toolNo
Overall length in6
RakeNegative
Rake angle-6
Shank height in1
Shank width in1
StandardsISO 13399
Toolholder materialSteel
Toolholder styleDCLN
