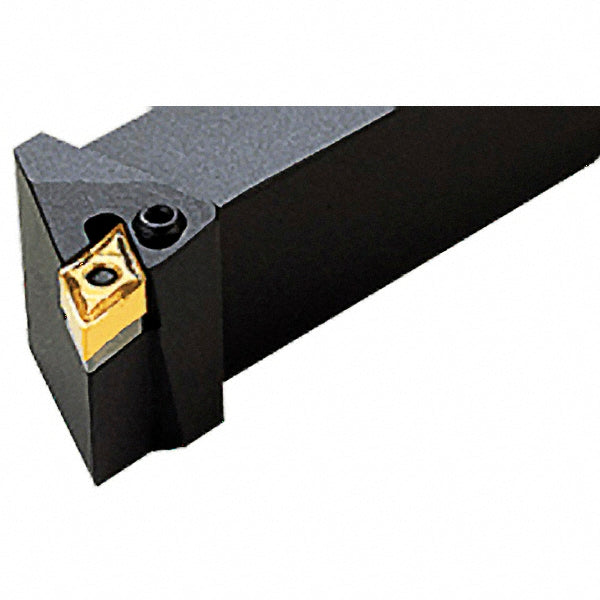

Indexable Turning & Profiling - Iscar 3602896

MFR# 3602896Series Isoturn

$161.73List $167.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 3602896 indexable turning & profiling. Series Isoturn.

Specifications

Back of bar to cutting edge1.5000
Compatible insert size codeDNMG432-GN
Complete insert compatibilityDNGA-Ceramic; DNGA-MC/M4 (CBN); DNGA-R2/M2 (CBN); DNGG-M4HF/M4HM (CBN); DNMA; DNMA (CBN); DNMG-GN; DNMG-M3M; DNMG-NF; DNMG-NR; DNMG-PF; DNMG-VL; DNMG-WG; DNMG/DNGG-PP; DNMG/DNGG-SF; DNMG/DNGG-TF; DNMM-NM; DNMS-12; DNMX-HT
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.5000
Insert compatibilityDN..
Insert holding methodClamp
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.2500
Shank width1.2500
StandardsISO 13399
Toolholder stylePDJN
