Iscar

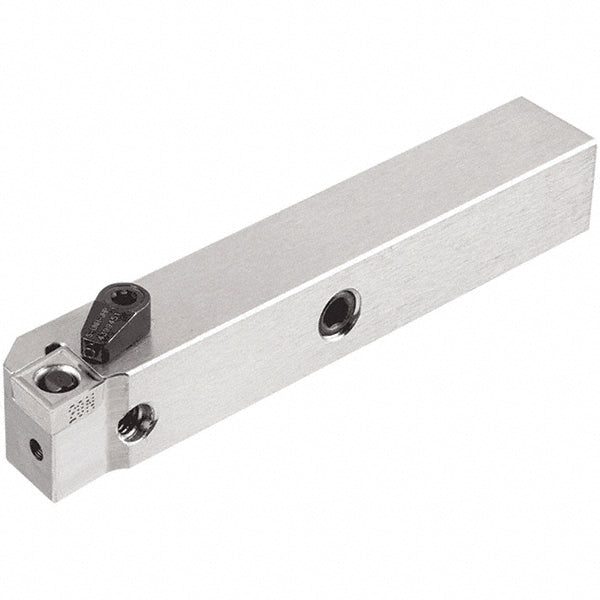

Indexable Turning & Profiling - Iscar 3603112
MFR# 3603112Series Isoturn
$385.43List $398.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3603112 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge (mm)16.20
Compatible insert size codeCCMT09T302-SM
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.8780
Insert compatibilityCC..
Insert holding methodLever
Multi use toolNo
Overall length4.9213
RakeNeutral
Rake angle0
Shank height0.6299
Shank width0.6299
StandardsISO 13399
Toolholder stylePCLC
