Iscar

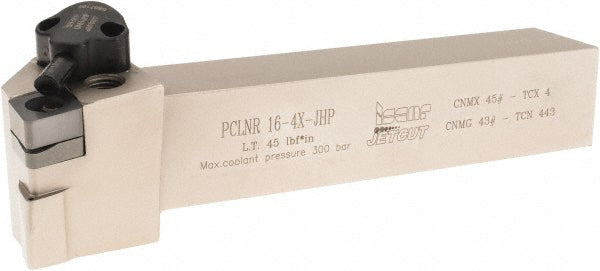

Indexable Turning & Profiling - Iscar 3603312
MFR# 3603312Series Heliturn
$333.12List $338.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3603312 indexable turning & profiling. Series Heliturn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeCNMX452-M4PW
Complete insert compatibilityCNMX-HTW; CNMX-M4MW
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.3000
Insert compatibilityCNMX
Insert holding methodClamp
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.0000
Shank width1.0000
StandardsISO 13399
Toolholder stylePCLN
