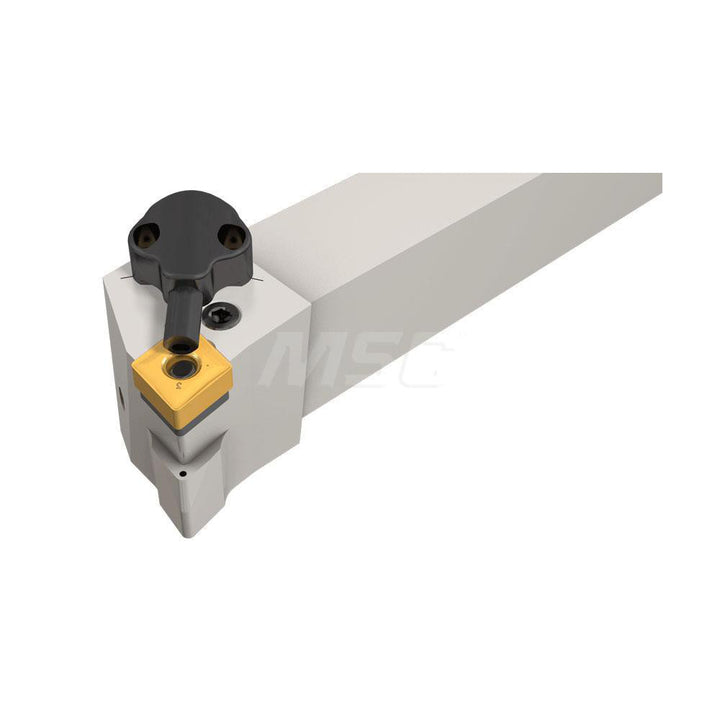

Indexable Turning & Profiling - Iscar 3603314

Iscar

Indexable Turning & Profiling - Iscar 3603314

MFR# 3603314Series Heliturn

$327.33List $338.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 3603314 indexable turning & profiling. Series Heliturn.

Specifications

Back of bar to cutting edge1.2500
Compatible insert size codeCNMG431-GN
Complete insert compatibilityCNGA-MC/M4 (CBN); CNGA-R2/M2/F2 (CBN); CNGG-M4HF/M4HM (CBN); CNMA; CNMG-GN; CNMG-M3M; CNMG/CNGG-PP; CNMG/CNGG-TF; CNMM-HTW; CNMM-NM
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.3000
Insert compatibilityCN..
Insert holding methodClamp
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.0000
Shank width1.0000
StandardsISO 13399
Toolholder stylePCLN
