Iscar

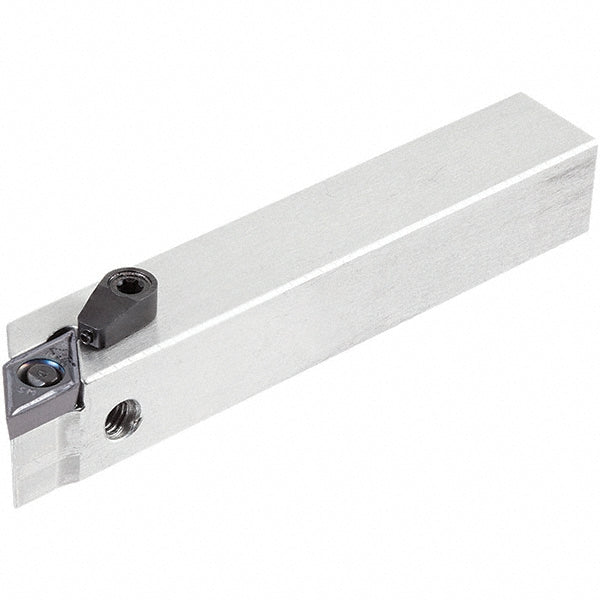

Indexable Turning & Profiling - Iscar 3603361
MFR# 3603361Series Isoturn
$385.43List $398.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3603361 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge0.6300
Compatible insert size codeDCGT3-0-SM
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.1000
Insert compatibilityDC..070..
Insert holding methodLever
Multi use toolNo
Overall length in4
RakeNeutral
Rake angle0
Shank height0.6200
Shank width0.6200
StandardsISO 13399
Toolholder stylePDAC
