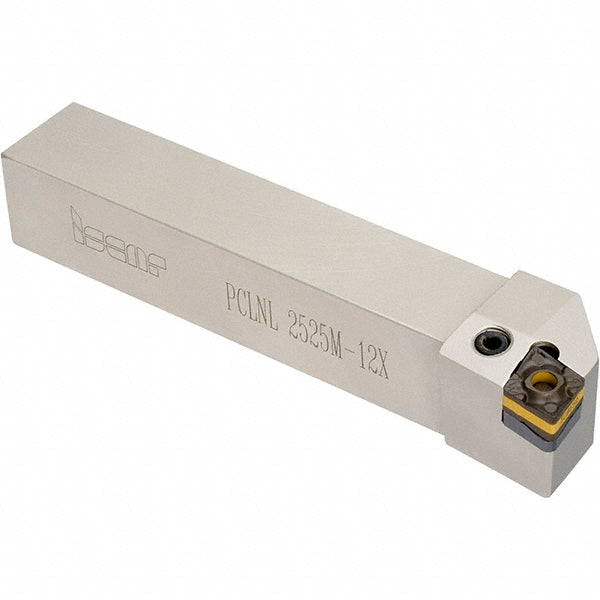

Indexable Turning & Profiling - Iscar 3603465
MFR# 3603465Series Heliturn LD
$138.95List $147.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3603465 indexable turning & profiling. Series Heliturn LD.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeWNMX341-M3MW
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.0000
Insert compatibilityWNMA 3-1; WNMA 3-2; WNMA 3-3; WNMA 331; WNMA 332; WNMA 432; WNMA 432-WG; WNMA 433; WNMA 434; WNMA 644; WNMG 3-.004-NF; WNMG 3-0-NF; WNMG 3-1-GN; WNMG 3-1-M3P; WNMG 3-1-NF; WNMG 3-1-PP; WNMG 3-1-TF; WNMG 3-1-WG; WNMG 3-2-GN; WNMG 3-2-M3P; WNMG 3-2-NF; WNMG
Insert holding methodLever
Insert inscribed circle0.3750
Multi use toolNo
Overall length4.5000
RakeNegative
Rake angle-6
Shank height0.7500
Shank width0.7500
StandardsISO 13399
Toolholder stylePWLN
