Iscar

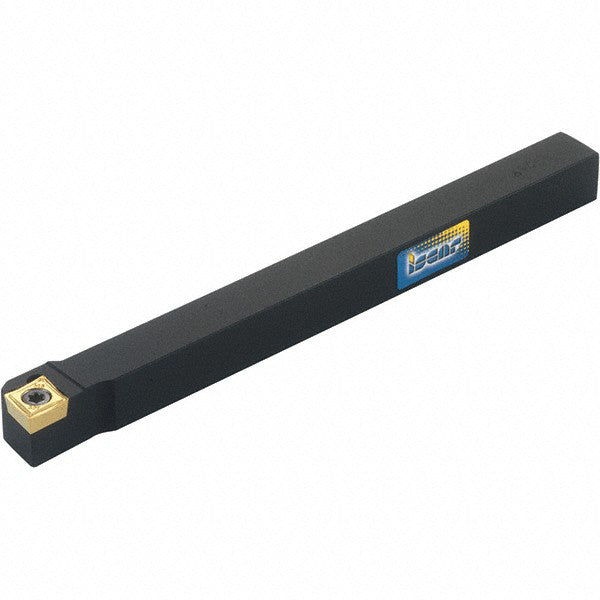

Indexable Turning & Profiling - Iscar 3606535
MFR# 3606535Series Isoturn
$172.38List $178.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3606535 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge in1/4
Compatible insert size codeDCGT3-0-SM
Coolant throughNo
Cutting directionNeutral
Cutting tool applicationTurning
Hand of holderNeutral
Head length0.9800
Insert compatibilityDC..3
Insert holding methodScrew
Multi use toolNo
Overall length3.5000
RakeNeutral
Rake angle0
Shank height0.5000
Shank width in1/2
StandardsISO 13399
Toolholder styleSDPC
