Iscar

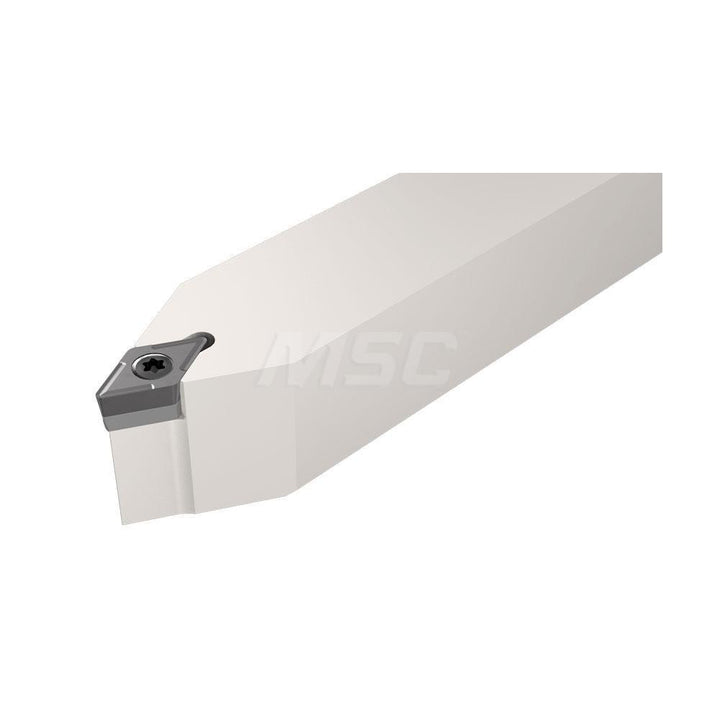

Indexable Turning & Profiling - Iscar 3606536
MFR# 3606536Series Isoturn
$219.83List $227.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3606536 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge0.3800
Compatible insert size codeDCGT3-0-SM
Coolant throughNo
Cutting directionNeutral
Cutting tool applicationTurning
Hand of holderNeutral
Head length0.9800
Insert compatibilityDC..3
Insert holding methodScrew
Multi use toolNo
Overall length4.5000
RakeNeutral
Rake angle0
Shank height0.7500
Shank width0.7500
StandardsISO 13399
Toolholder styleSDPC
