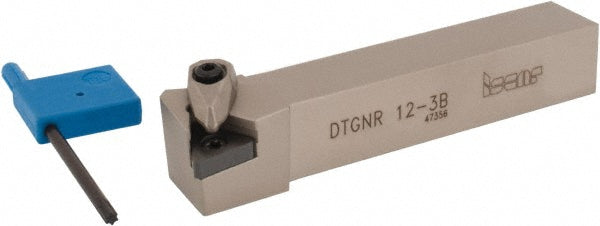

Indexable Turning & Profiling - Iscar 3606656

Iscar

Indexable Turning & Profiling - Iscar 3606656

MFR# 3606656Series Isoturn

$136.55List $141.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 3606656 indexable turning & profiling. Series Isoturn.

Specifications

Back of bar to cutting edge1.0000
Compatible insert size codeTNMG331-F3P
Complete insert compatibilityTNGA-Ceramic; TNGA-M3 (CBN); TNGA-MC/M6 (CBN); TNGG-M6HF/M6HM (CBN); TNMA; TNMA (CBN); TNMG-GN; TNMG-M3M; TNMG-NF; TNMG-PF; TNMG-SF; TNMG-TF; TNMG-VL; TNMG/TNGG-PP; TNMM-RP; TNMS-12; TNMZ-RF/LF
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.9800
Insert compatibilityTN..33.
Insert holding methodClamp
Multi use toolNo
Overall length4.5000
RakeNegative
Rake angle-6
Shank height0.7500
Shank width0.7500
StandardsISO 13399
Toolholder styleDTGN
