Iscar

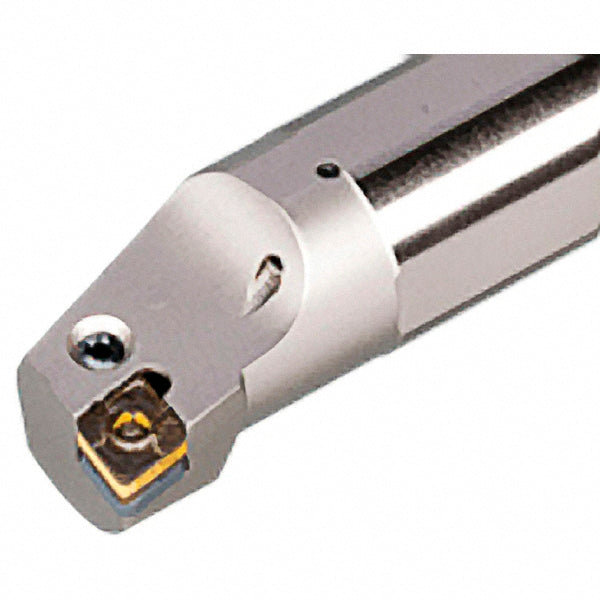

Indexable Boring - Iscar 3606662
MFR# 3606662Series Heliturn LD
$484.20List $500.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3606662 indexable boring. Series Heliturn LD.
Specifications
Center to cutting edge0.7600
Compatible insert shapeDiamond
Compatible insert size code1207
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Insert compatibilityCNMX 1207..
Insert holding methodClamp
Insert inscribed circle (mm)12.70
Maximum bore depth2.0000
Minimum bore diameter2.1300
Multi use toolNo
Overall length12.0000
RakeNegative
Rake angle-13.00
Shank diameter in1-1/4
Shank height1.1400
StandardsISO 13399
Toolholder styleA-PCLN
Tool materialSteel
