Iscar

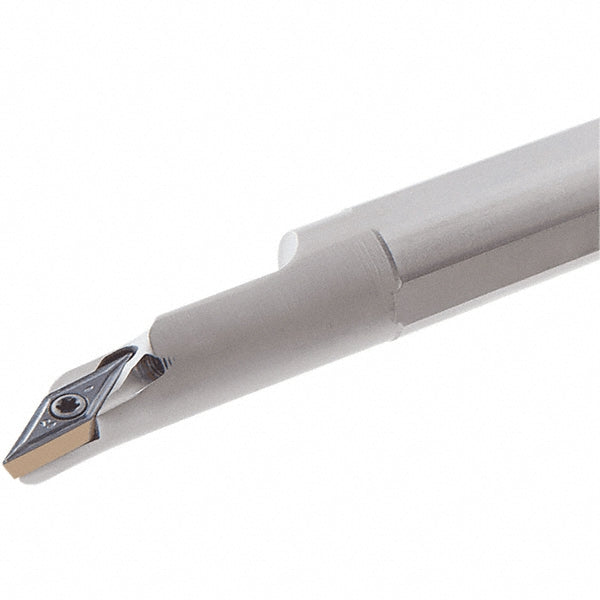

Indexable Boring - Iscar 3690703
MFR# 3690703Series Isoturn
$246.94List $255.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3690703 indexable boring. Series Isoturn.
Specifications
Center to cutting edge (mm)2.00
Compatible insert shapeDiamond
Compatible insert size code1103
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Insert compatibilityVC.T 1103..
Insert holding methodScrew
Insert inscribed circle (mm)6.35
Maximum bore depth (mm)37.00
Minimum bore diameter (mm)25.00
Multi use toolNo
Overall length (mm)200.00
RakeNegative
Rake angle-3.00
Shank diameter (mm)20.00
Shank height0.7480
StandardsISO 13399
Toolholder styleS-SVJC
Tool materialSteel
