Iscar
Indexable Turning & Profiling - Iscar 3698269
MFR# 3698269Series Isoturn
$220.80List $228.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

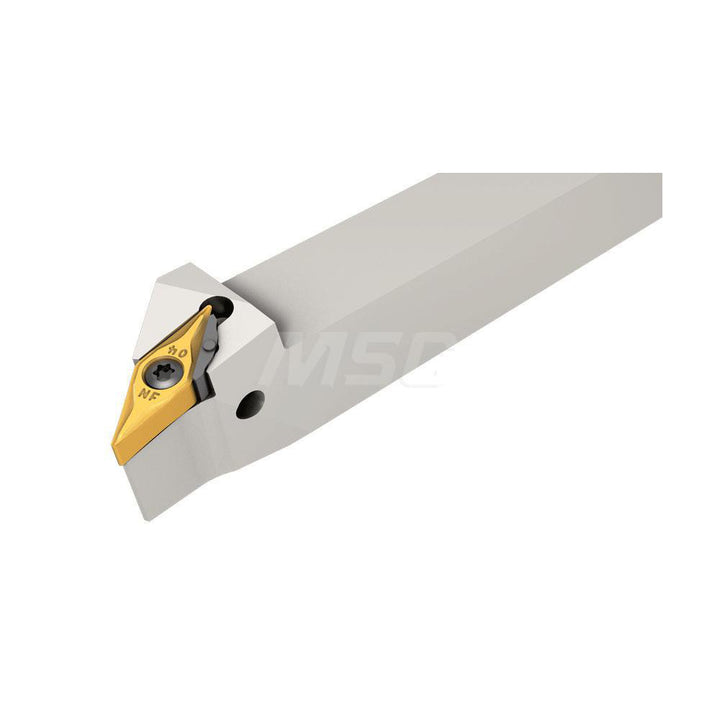

The Iscar 3698269 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge0.6300
Compatible insert size codeVNMG2.5-0-SF
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationMilling; Turning
Hand of holderRight Hand
Head length1.0000
Insert compatibilityVN..2.5-..
Insert holding methodScrew
Multi use toolNo
Overall length in4
RakeNegative
Shank height in5/8
Shank width in5/8
StandardsISO 13399
Toolholder materialSteel
Toolholder styleSVAN
