Iscar
Indexable Threading Toolholders - Iscar 3800072
MFR# 3800072Series SIR
$236.53List $240.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

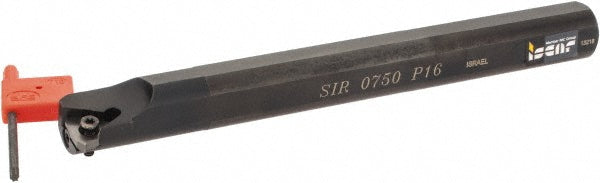

The Iscar 3800072 indexable threading toolholders. Series SIR.
Specifications
Back of bar to cutting edge1.0000
Center to cutting edge0.5100
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Hand of holderRight Hand
Insert compatibilityP 16
Insert holding methodScrew
Insert inscribed circle in3/8
Minimum bore diameter1.0000
Multi use toolNo
Overall length in7
Shank height0.7500
Shank length in6-1/4
Shank width diameter0.7500
Thread typeInternal
Toolholder styleSI
