Iscar

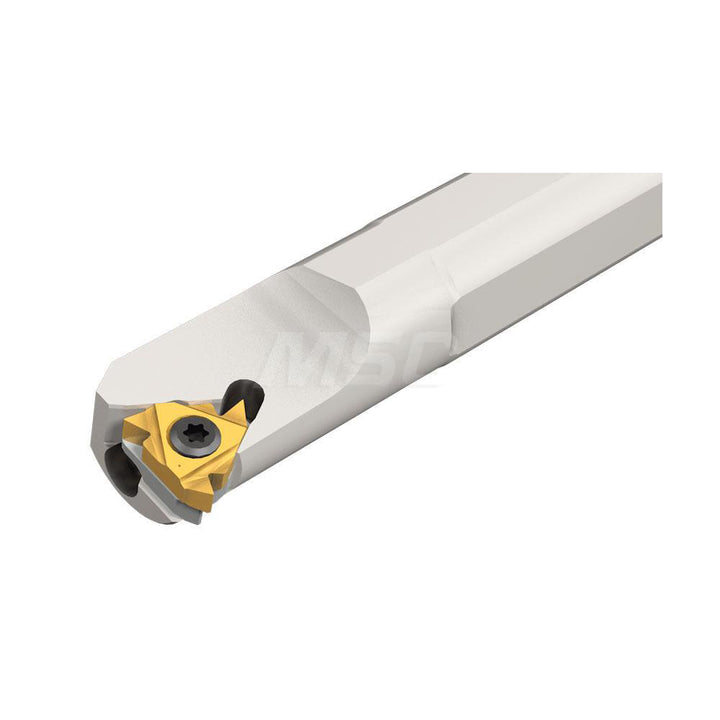

Indexable Threading Toolholders - Iscar 3800078
MFR# 3800078Series SIR
$313.41List $318.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3800078 indexable threading toolholders. Series SIR.
Specifications
Back of bar to cutting edge1.4200
Center to cutting edge0.7700
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Hand of holderRight Hand
Insert compatibilityS 16
Insert holding methodScrew
Insert inscribed circle in3/8
Minimum bore diameter1.4200
Multi use toolNo
Overall length10.0000
Shank height1.2500
Shank length in8-3/4
Shank width diameter1.2500
Thread typeInternal
Toolholder styleSI
