Iscar

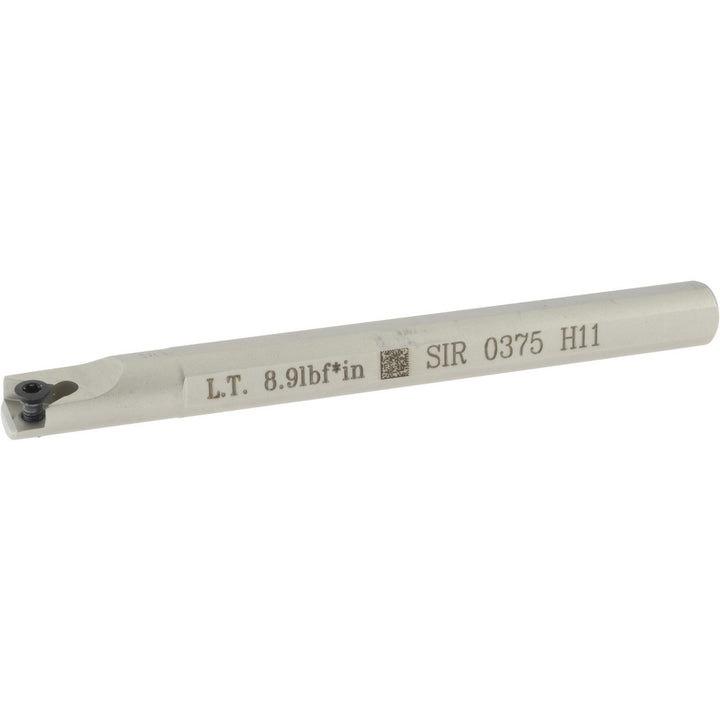

Indexable Threading Toolholders - Iscar 3800109
MFR# 3800109Series IscarThread
$149.80List $152.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3800109 indexable threading toolholders. Series IscarThread.
Specifications
Center to cutting edge0.2900
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Hand of holderRight Hand
Insert compatibilityGTGA; GTMA; IR to BUT; IR to EL; IR to MJ; IR/L to 55; IR/L to 60; IR/L to ABUT; IR/L to ACME; IR/L to API; IR/L to API RD; IR/L to BSPT; IR/L to ISO; IR/L to NPT; IR/L to NPTF; IR/L to PG; IR/L to RND; IR/L to SAGE; IR/L to STACME; IR/L to TR; IR/L to UN
Insert holding methodScrew
Minimum bore diameter0.4700
Multi use toolNo
Neck diameter0.3800
Overall length4.0000
Shank height0.3800
Shank length3.6200
Shank width diameter0.3800
Thread typeInternal
Toolholder styleSI
