Iscar

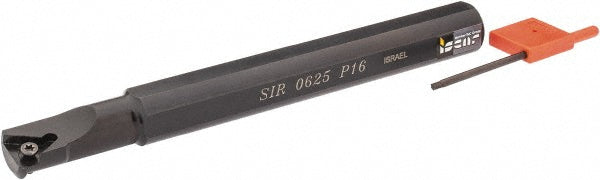

Indexable Threading Toolholders - Iscar 3800111
MFR# 3800111Series SIR
$161.73List $167.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3800111 indexable threading toolholders. Series SIR.
Specifications
Back of bar to cutting edge0.7500
Center to cutting edge0.4500
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Hand of holderRight Hand
Head length1.5000
Insert compatibilityP 16
Insert holding methodScrew
Insert inscribed circle in3/8
Maximum depth of cut1.5000
Minimum bore diameter0.7500
Multi use toolNo
Overall length in7
Shank height0.7500
Shank length in6-3/8
Shank width diameter0.7500
Thread typeInternal
Toolholder styleSI
