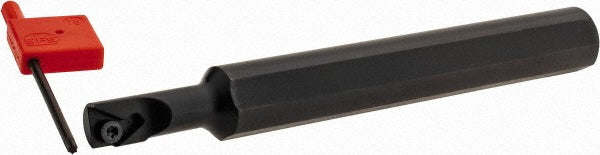

Indexable Threading Toolholders - Iscar 3800128

Iscar

Indexable Threading Toolholders - Iscar 3800128

MFR# 3800128Series IscarThread

$147.19List $152.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 3800128 indexable threading toolholders. Series IscarThread.

Specifications

Center to cutting edge0.2600
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Hand of holderRight Hand
Head length1.0000
Insert compatibilityIR/L to 55; IR/L to 60; IR/L to ABUT; IR/L to BSPT; IR/L to ISO; IR/L to MJ; IR/L to NPT; IR/L to NPTF; IR/L to PG; IR/L to UN; IR/L to UNJ; IR/L to W
Insert holding methodScrew
Maximum depth of cut1.0000
Minimum bore diameter0.4700
Multi use toolNo
Neck diameter0.3800
Overall length5.0000
Shank height0.6200
Shank length4.0000
Shank width diameter0.6200
Thread typeInternal
Toolholder materialSolid Carbide
Toolholder styleSI
