Iscar

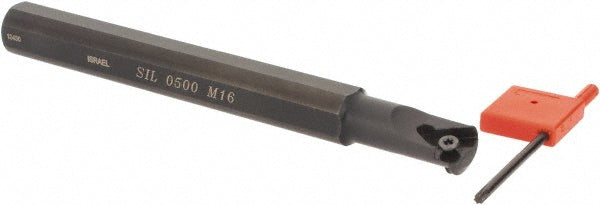

Indexable Threading Toolholders - Iscar 3800130
MFR# 3800130Series SIL
$153.97List $159.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3800130 indexable threading toolholders. Series SIL.
Specifications
Back of bar to cutting edge0.6400
Center to cutting edge0.3900
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Hand of holderLeft Hand
Head length1.2500
Insert compatibilityM 16
Insert holding methodScrew
Insert inscribed circle in3/8
Maximum depth of cut1.2500
Minimum bore diameter0.6400
Multi use toolNo
Overall length in6
Shank height0.6250
Shank length in5-1/2
Shank width diameter0.6250
Thread typeInternal
Toolholder styleSI
