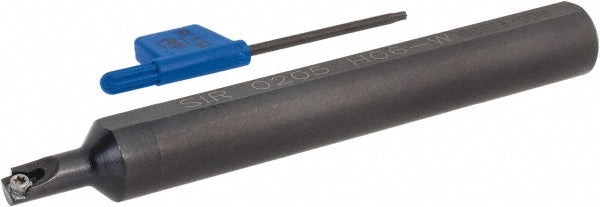

Indexable Threading Toolholders - Iscar 3800133

Iscar

Indexable Threading Toolholders - Iscar 3800133

MFR# 3800133Series IscarThread

$265.35List $274.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 3800133 indexable threading toolholders. Series IscarThread.

Specifications

Center to cutting edge0.1700
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Hand of holderRight Hand
Head length0.5000
Insert compatibilityGTGA; GTMA; IR to BUT; IR to EL; IR to MJ; IR/L to 55; IR/L to 60; IR/L to ABUT; IR/L to ACME; IR/L to API; IR/L to API RD; IR/L to BSPT; IR/L to ISO; IR/L to NPT; IR/L to NPTF; IR/L to PG; IR/L to RND; IR/L to SAGE; IR/L to STACME; IR/L to TR; IR/L to UN
Insert holding methodScrew
Maximum depth of cut0.5000
Minimum bore diameter0.2500
Multi use toolNo
Neck diameter0.2000
Overall length4.0000
Shank height0.5000
Shank length3.8000
Shank width diameter0.5000
Thread typeInternal
Toolholder styleSI
