Iscar

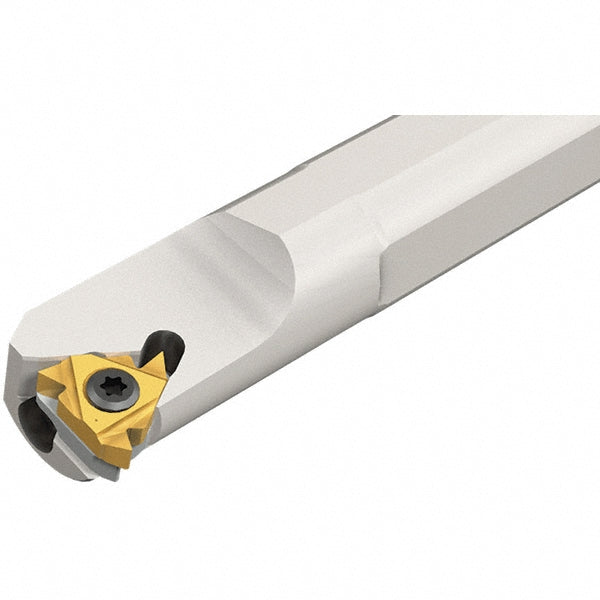

Indexable Threading Toolholders - Iscar 3800157
MFR# 3800157Series IscarThread
$726.50List $750.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3800157 indexable threading toolholders. Series IscarThread.
Specifications
Center to cutting edge0.2500
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Hand of holderRight Hand
Head length1.4000
Insert compatibilityIR/L to 55; IR/L to 60; IR/L to ISO; IR/L to TR; IR/L to W
Insert holding methodScrew
Maximum depth of cut1.4000
Minimum bore diameter0.3550
Multi use toolNo
Neck diameter0.2900
Overall length5.0000
Shank height0.3150
Shank length4.7100
Shank width diameter0.3150
Thread typeInternal
Toolholder materialSolid Carbide
Toolholder styleSI
