Iscar

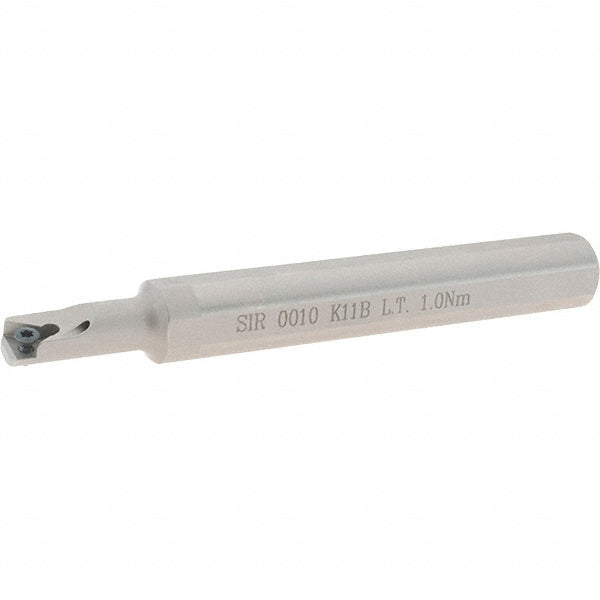

Indexable Threading Toolholders - Iscar 3890723
MFR# 3890723Series SIR
$184.33List $195.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3890723 indexable threading toolholders. Series SIR.
Specifications
Center to cutting edge (mm)7.40
Coolant throughYes
Hand of holderRight Hand
Head length (mm)25.00
Insert compatibilityIR-MJ; IR/L-55; IR/L-60; IR/L-ABUT; IR/L-BSPT; IR/L-ISO; IR/L-NPT; IR/L-NPTF; IR/L-PG; IR/L-UN; IR/L-UNJ; IR/L-W
Insert holding methodScrew
Insert inscribed circle (mm)6.35
Multi use toolNo
Overall length (mm)125.00
Shank height (mm)16.00
Shank width diameter (mm)16.00
Thread typeInternal
Toolholder styleSI
