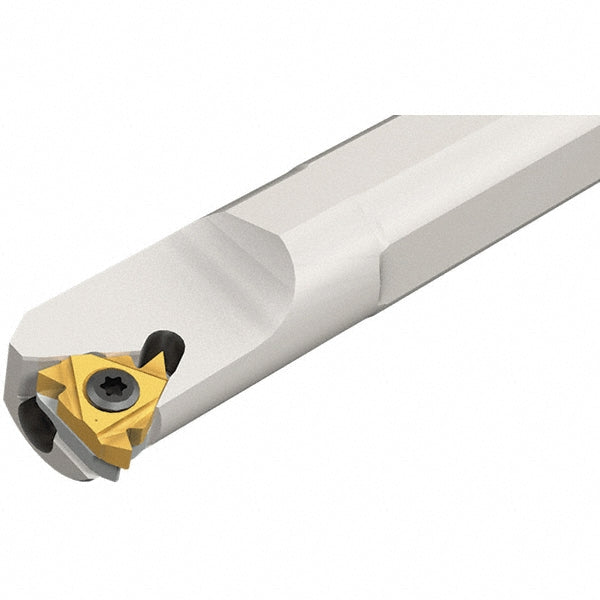

Indexable Threading Toolholders - Iscar 3892105

Iscar

Indexable Threading Toolholders - Iscar 3892105

MFR# 3892105Series IscarThread

$205.30List $212.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 3892105 indexable threading toolholders. Series IscarThread.

Specifications

Center to cutting edge0.4500
Coolant throughYes
Cutting tool applicationThreading
Hand of holderRight Hand
Head length1.5700
Insert compatibilityGTGA; GTMA; IR to MJ; IR/L to 55; IR/L to 60; IR/L to ABUT; IR/L to ACME; IR/L to API RD; IR/L to BSPT; IR/L to ISO; IR/L to NPT; IR/L to NPTF; IR/L to PG; IR/L to RND; IR/L to SAGE; IR/L to STACME; IR/L to TR; IR/L to UN; IR/L to UNJ; IR/L to W
Insert holding methodScrew
Maximum depth of cut1.5700
Minimum bore diameter0.7500
Multi use toolNo
Neck diameter0.6250
Overall length7.0000
Shank height0.7500
Shank length in6-3/8
Shank width diameter0.7500
Thread typeInternal
Toolholder styleSI
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
